Boom Swing Calibration RA-400

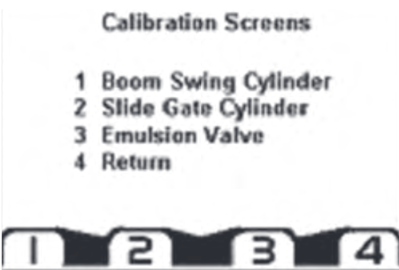

To navigate to the main calibration screen, hold Buttons
1 and 4 for two seconds, then push the button for the
needed function:
• Button 1 - Boom Swing Cylinder calibration screen.
• Button 2 - Slide Gate Cylinder calibration screen.
• Button 3 - Emulsion Valve calibration screen.
• Button 4 - Return to Main Screen.

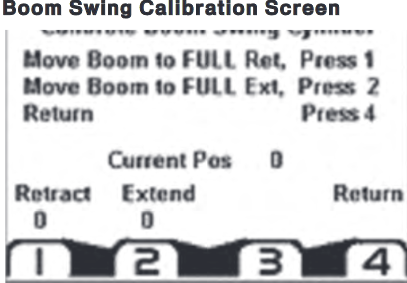

To set this feature:
1. Using the joystick, swing boom to the left until it
reaches its stored position. Press Button 1 and hold
momentarily to set the minimum position desired.
2. Using the joystick, swing boom to the right to the
maximum position desired. Push Button 2 and hold
momentarily to set the minimum position desired.
To exit this screen, press Button 4.
