Slide Gate Calibration RA-400

NOTE: The rock hopper should be empty when
calibrating this function.

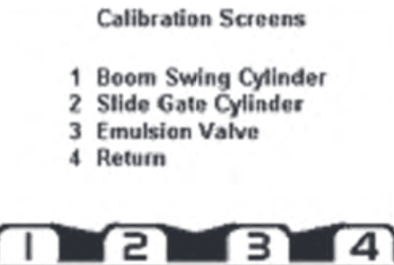

To navigate to the main calibration screen, hold Buttons
1 and 4 for two seconds, then push the button for the
needed function:
• Button 1 - Boom Swing Cylinder calibration screen.
• Button 2 - Slide Gate Cylinder calibration screen.
• Button 3 - Emulsion Valve calibration screen.
• Button 4 - Return to Main Screen

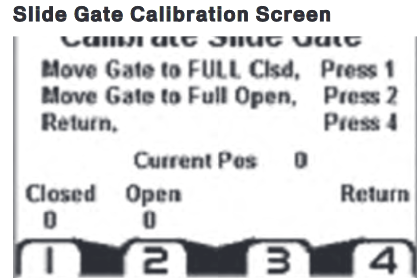

To set this feature:
1. Use the rock flow button on the joystick control
panel to close the slide gate. Push Button 1 and
hold momentarily to store that value.
2. Use the rock flow button to open the slide gate.
Push Button 2 and hold momentarily to store that
value.
To exit this screen, press Button 4.
