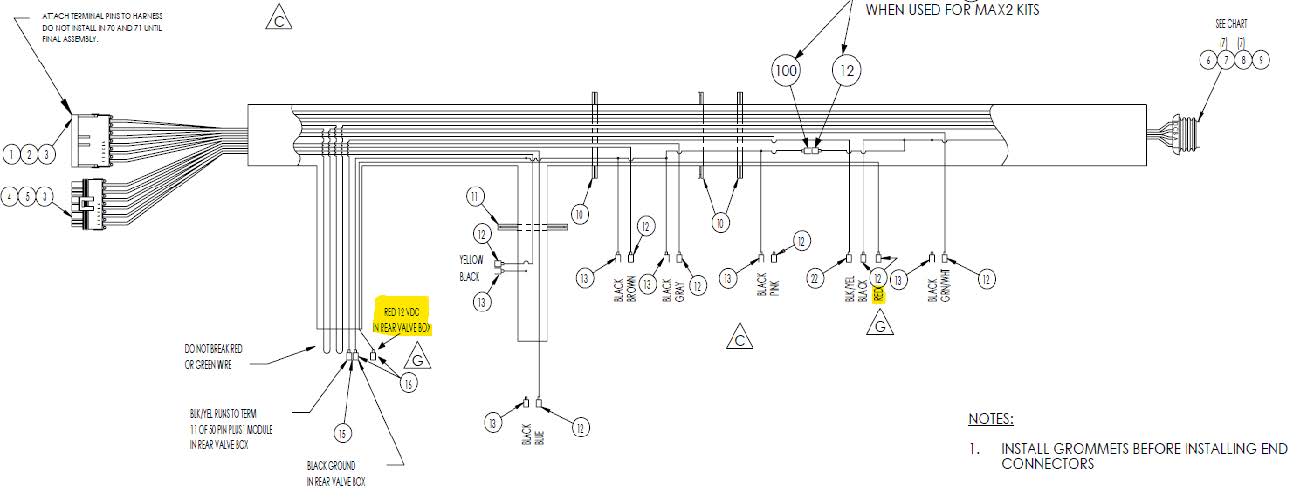

Rear wiring harness

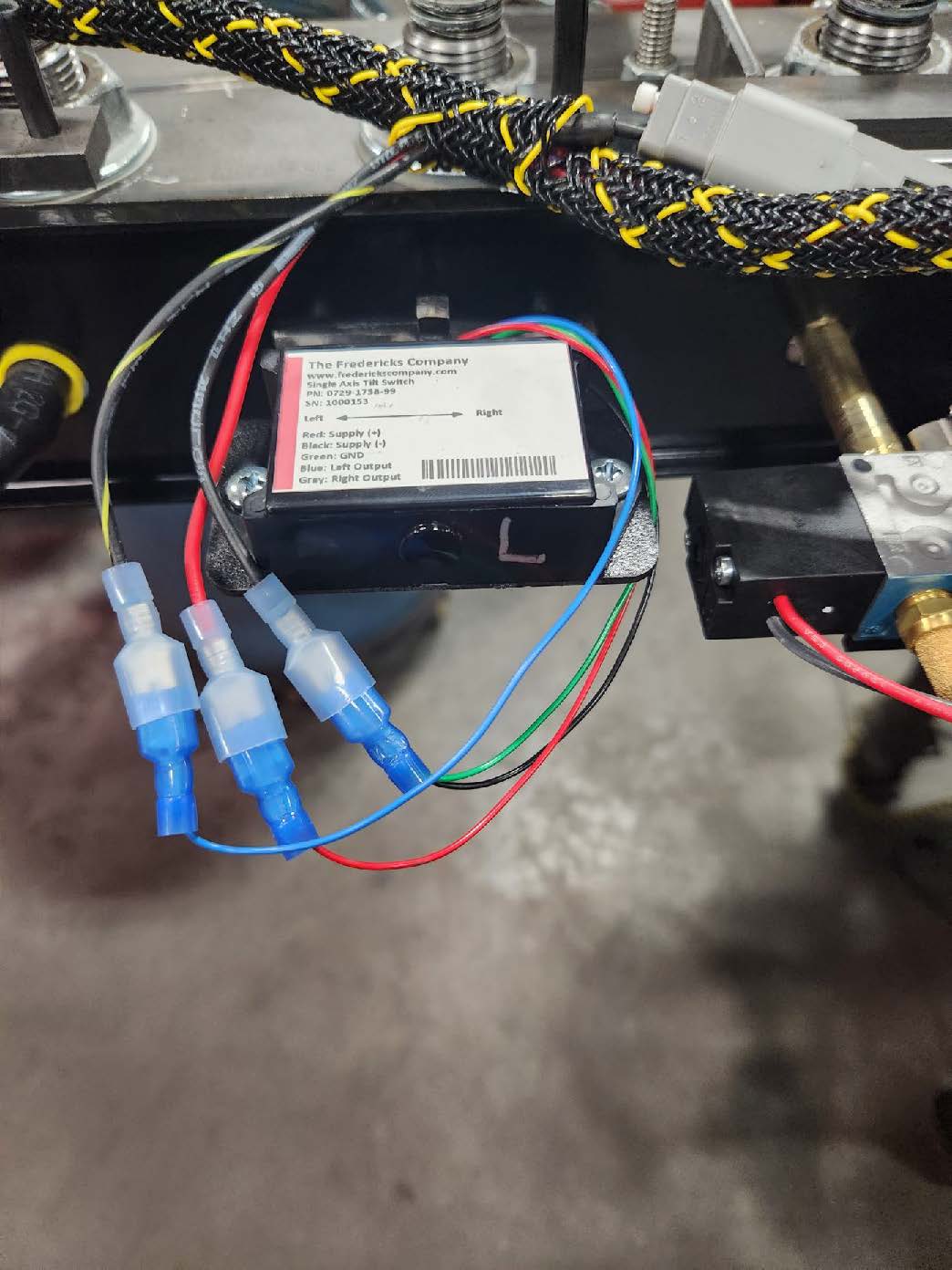

The left-side sensor uses the blue signal wire connected to the black with yellow tracer wire.

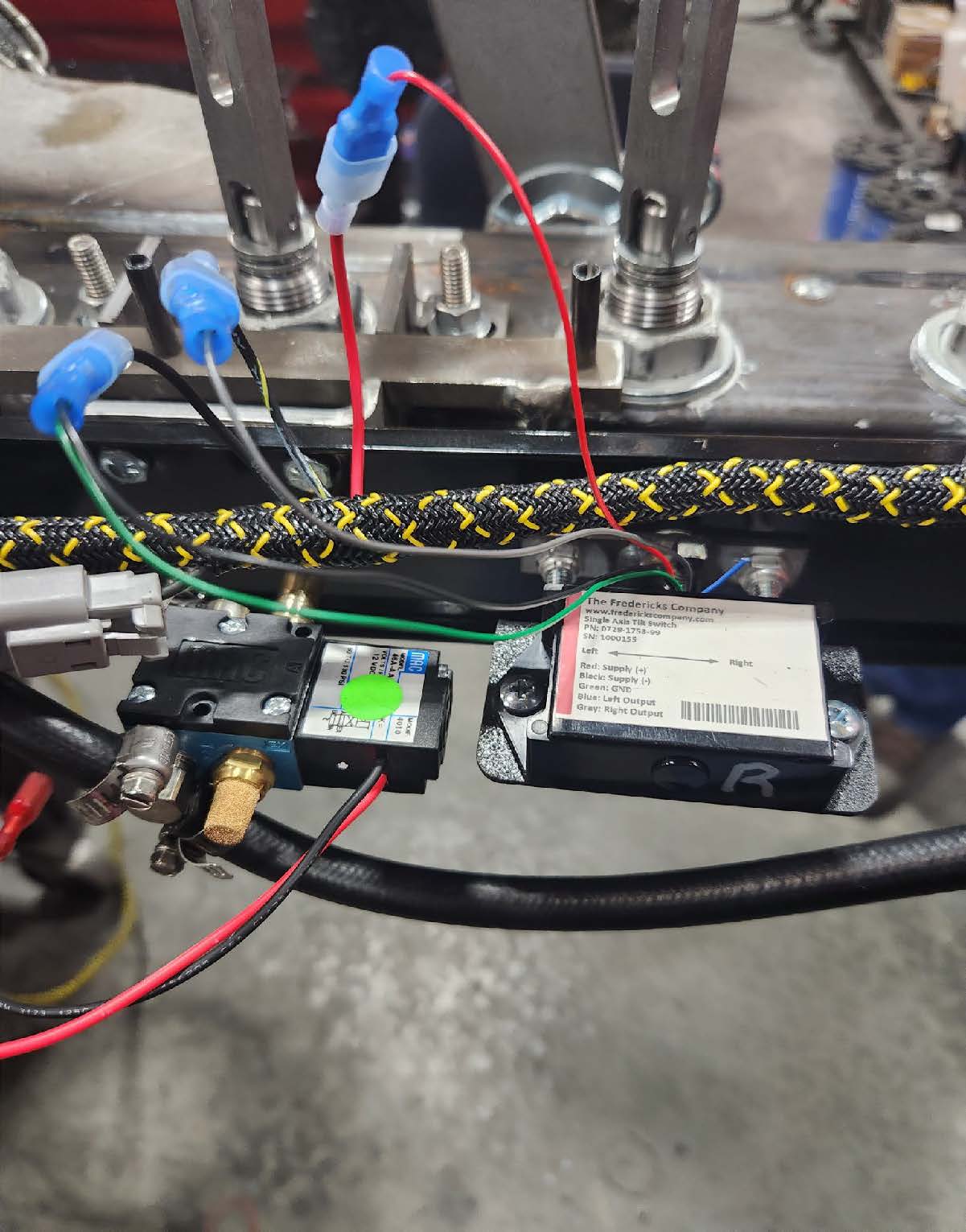

The right-side sensor uses the gray signal wire connected to the black with yellow tracer wire.

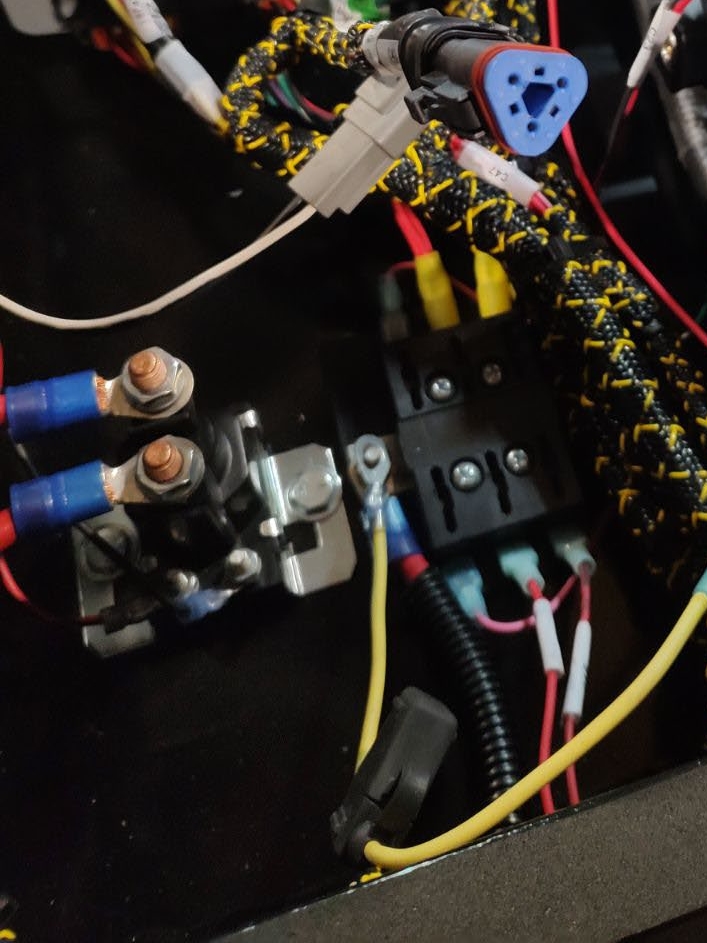

The tilt sensors need a 12 volt power wire with an inline 5 amp fuse. The power wire will go to both left and right sensors. Connect the power wire to battery power as shown below.
Loom and route the power wire to both left and right sensors and connect it to the red lead on the sensor. Both green and black wires on the sensor are ground.
The sensors are normally open when fully raised. The sensor should be adjusted to have 12 volts when lowered to 30 degrees and below.
