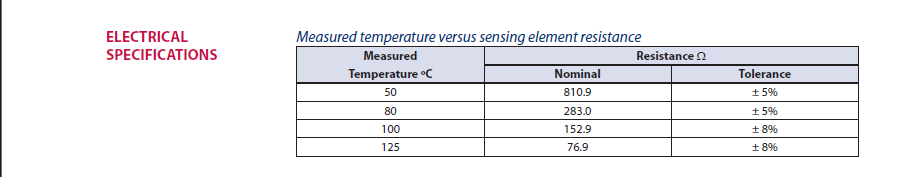

Measure resistance across both pins and refer to table below to see if temp sender is measuring correctly. If sender is measuring correctly the wiring will need to be inspected to make sure it is carrying resistance correctly to controller.
Hydraulic Temp Sender Troubleshooting 8530
