WARNING : Wheels must be blocked to prevent machine from moving while preparing machine for towing!
1 - Block wheels to prevent machine from moving.

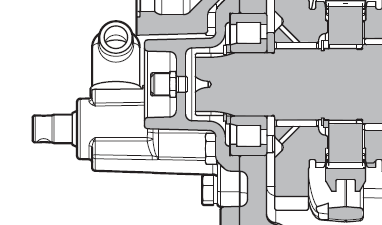

2 - Using a small prybar, manually pull shifting lever at front of rear end all the way out.
3 - Now push lever all the way in.
4- Find canter position to disengage gears for towing.
5 - On the sides of the rear end, locate the screw with a square head.
6 - Using a caliper, measure the exact extension of the screw and record measurement.
7 - Turn the screw all the way in to release the brakes for towing the machine.
To return the machine from towing condition to normal operation proceed as follows:
1 - Push shifting bar at front of rear end all the way in.
2 - Adjust square head screw to the exact position measured in step 6 above.
