SUBJ: Motor Grader Wiring Inspection
Machine Model: 685/695
Serial Numbers:
685-430000 695-435500 695-451388 685-430001 695-438733 685-430005
685-442816 685-428801 695-423808 695-423812 695-428806 685-430000
685-430001 695-430004 685-430005 695-434090 695-435500 695-435503
695-438733 695-435510 695-435512 695-439219 685-439220 695-443122
685-442816 685-443119 685-443121 695-443124 685-443127 695-443128
695-451388 685-441934 685-451402 695-451407 685-451399
Action Requested: Immediate Inspection and Correction
Parts Required: N/A
Issue Description: Wires may be running across relay terminals causing them to short out.

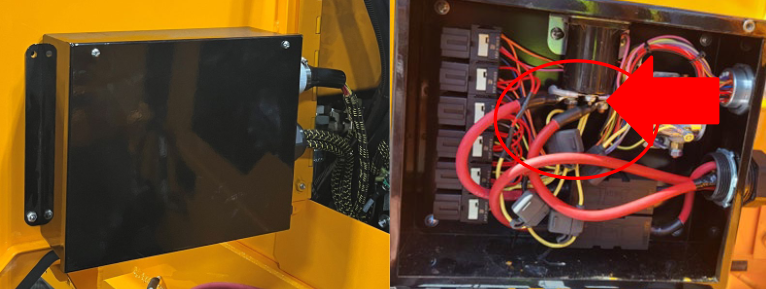

Please see images below for location of box and wires running across relay terminals.

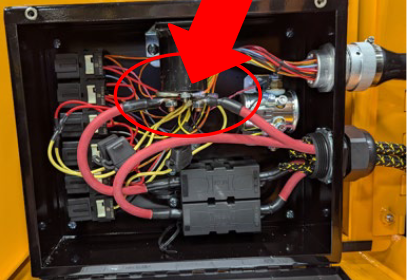

Grid heat box with 4-gauge cable from battery routed across relay terminal.
Action Detail:
Wires should be run to each side away from terminal studs. Please see image below showing
proper 4-gauge cable on grid heat box, routed away from relay terminal.
