8616D Engine Belly Pan Update 10/25/2025

DATE: 10/25/2025

SUBJ: 8616D Belly Pan Update

Machine Model: 8616D

Serial Numbers: 276381----515634

Action Requested: Proactive Inspection and Correction at Next Maintenance Interval

Parts Required: 1- 1021260SRV Weldment Engine Pan Cover

Issue Description:

LeeBoy has identified a potential interference concern between the engine oil pan and the weldment located directly beneath it. On a unit with approximately 1,600 operating hours, contact was observed at several points, which could lead to wear and eventual perforation of the oil pan.

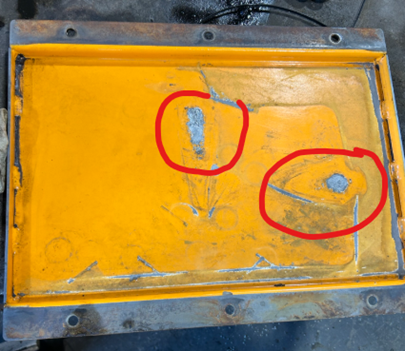

Dealers are requested to inspect higher-hour units first, then proceed to lower-hour machines. Remove the weldment and check for paint wear or contact marks—particularly in the areas indicated in the reference image—as these are the most likely rub points.

Action Detail:

Please order 1 of part # 1021260SRV Weldment Engine Pan Cover per unit. List Price is $ 50.00.

Please check the old pan for signs of painting wear, if there are none and the oil pan looks fine, just replace this weldment with a new one on each unit.

Please allow approximately 2 hours of labor time for this service procedure.

Warranty information:

If unit is in warranty, please file a Campaign claim (130 ENGINE WELDMENT REPLACEMENT)

If unit is out of warranty, please file a Goodwill claim 10/29/2025 MAB.

For questions or concerns, please contact Rapid Response at 844-205-5499, or by email at [e-mail]
